Birm is a Granular filter media used for the removal of Iron and Manganese.

AIO technology uses natural oxidation to remove Iron from the water supply, without chemicals, without aerators and without air compressors.

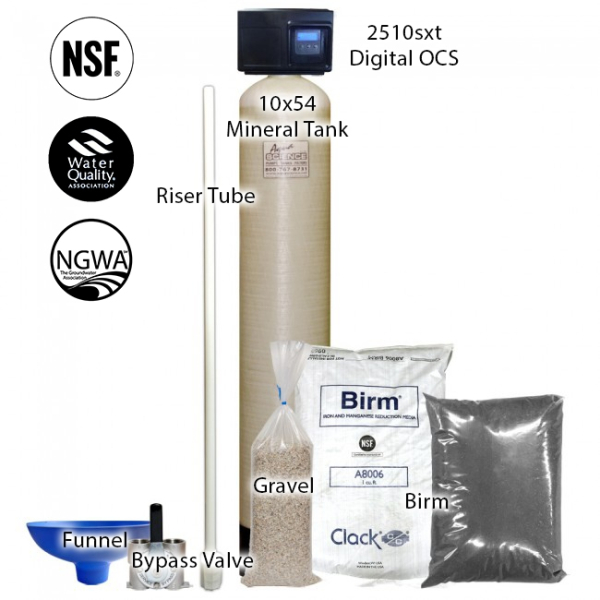

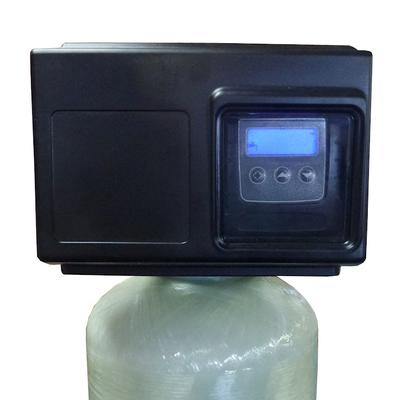

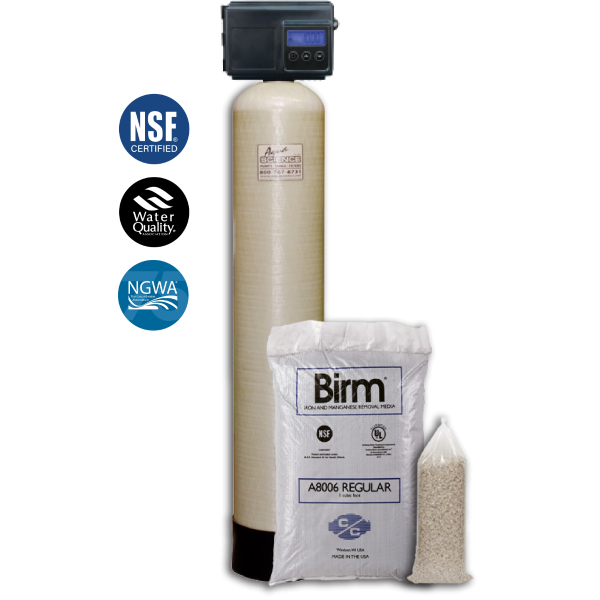

This system includes:Fleck 2510SXT AIO Digital Control valve
1" stainless steel by-pass
1.5 Cu. ft of Birm
1 Sleeve of gravel
Funnel and Cap

Birm is an efficient and economical media for the reduction of dissolved iron and manganese compounds from raw water supplies. It may be used in either gravity fed or pressurized water treatment systems. Birm acts as an insoluble catalyst to enhance the reaction between dissolved oxygen (D.O.) and the iron compounds. In ground waters the dissolved iron is usually in the ferrous bicarbonate state due to the excess of free carbon dioxide and is not filterable. Birm, acting as a catalyst between the oxygen and the soluble iron compounds, enhances the oxidation reaction of Fe++ to Fe+++ and produces ferric hydroxide which precipitates and may be easily filtered. The physical characteristics of Birm provide an excellent filter media which is easily cleaned by backwashing to remove the precipitant. Birm is not consumed in the iron removal operation and therefore offers a tremendous economic advantage over many other iron removal methods.

Other advantages of Birm include; long material life with relatively low attrition loss, a wide temperature performance range, and extremely high removal efficiency. Negligible labor costs are involved because Birm does not require chemicals for regeneration, Periodic backwashing is required.

When using Birm for iron removal, it is necessary that the water: contains no oil or hydrogen sulfide, organic matter not to exceed 4-5 ppm, the D.O. content equal at least 15% of the iron content with a pH of 6.8 or more. If the influent water has a pH of less than 6.8, neutralizing additives such as Clack Corosex®, Calcite, or soda ash may be used before the Birm filter to raise the pH. Water having a low D.O. level may be pretreated by aeration.
