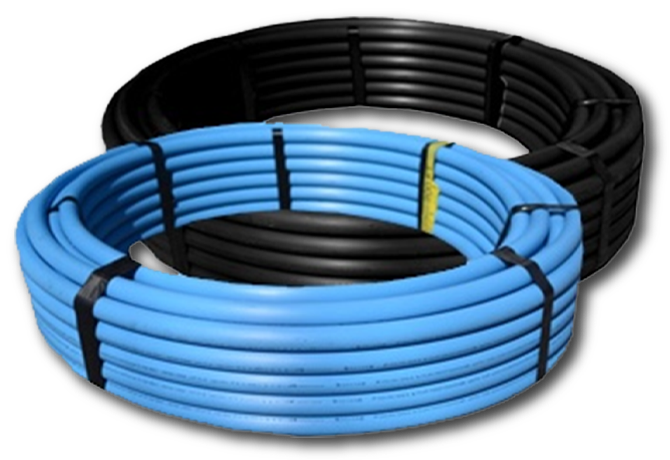

Polyethylene Well Pipe

Choosing Well Pipe

When installing a submersible pump it is important to select pipe that has a pressure rating that matches or exceeds the working pressure that will exist in the well.

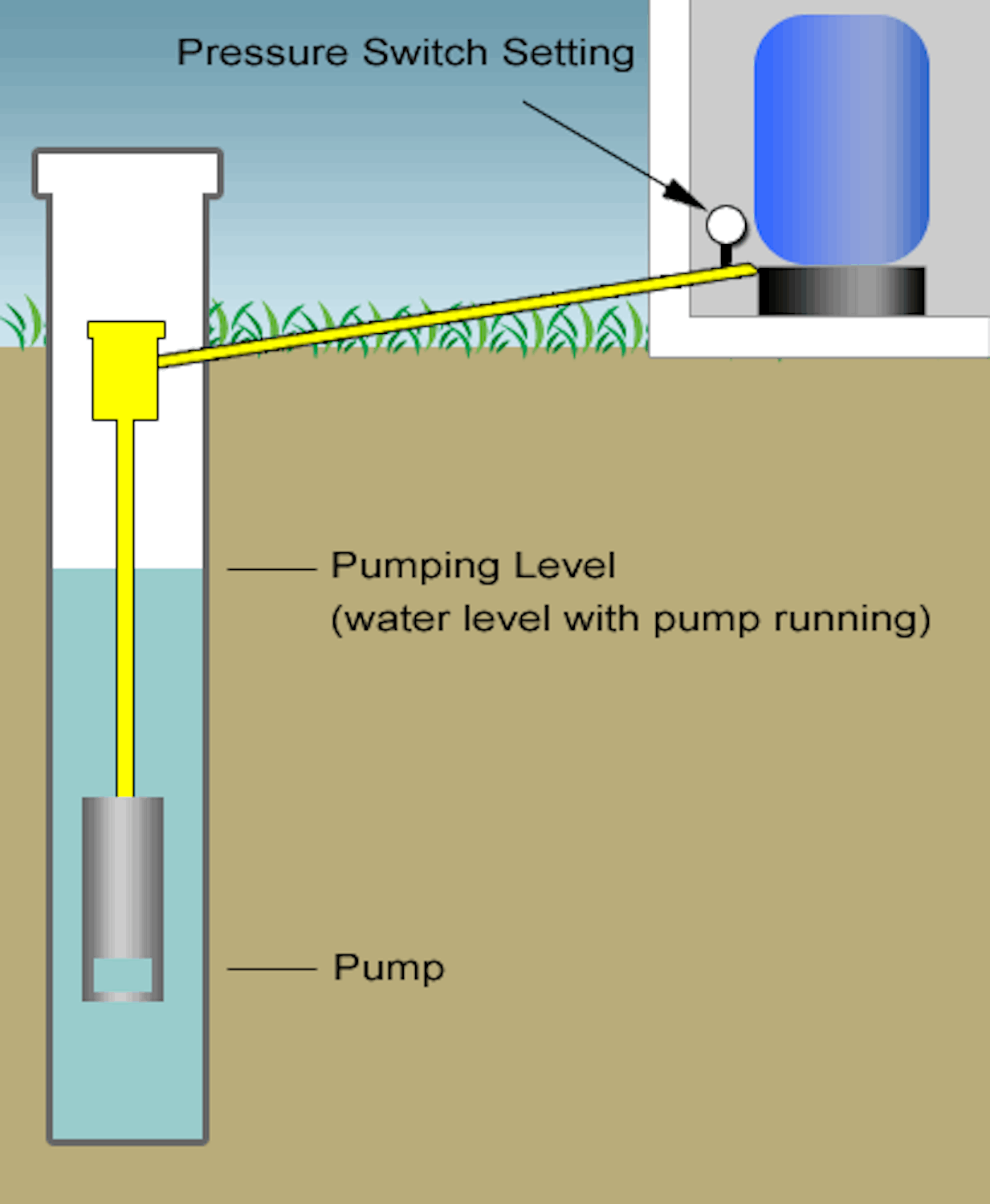

Two factors are used to determine Working Pressure:

1. Number of feet from the pressure tank to the pumping water level
   (One Foot of Water Depth = .433 PSI)
2. The setting of the tank pressure switch(in PSIG)

The following formula will provide the Working Pressure:

(Depth X .433) + (switch setting) = Working Pressure

For example, if the pumping level is 330 ft. and the Pressure Switch is set at 50 PSIG the formula will be:

(330 X .433) + 50 = 192.9 PSI

A pipe with a rating of 200 PSI or greater is needed. Use of pipe with a lower pressure rating may result in pipe failure.

Please Note: If the pumping level used to calculate pipe requirements for a well is substantially above the bottom and the pumping level drops due to drought or other conditions, the pressure rating of the pipe could be exceeded.
