10' WaterPro Well Stop Sensor - 230v
MSRP $221.58
Sale Price $190.00
14% OFF Factory Direct Saving
SKU#
8070
In stock
Manufacturer: Aqua Science
Model #: 8070
Warranty: Three-Year Limited Warranty
Shipping Weight: 5 lbs
Capacity: 30
Voltage: 230v
Resin Upgrades: Included in all systems: AquaScience 8% Crosslink Resin
Free Shipping: Yes
- Prevents flooding by detecting water and automatically shutting off the well pump.
- Easy to install with quick in-line connection to a pressure switch.
- Detects water at a preset level of 1/16-inch.
- Powered by a 230VAC power source.
- No control box required for operation.
- Internal relay activation to disconnect power to the well pump upon water detection.
- Reset pushbutton for restoring normal operation after an alarm.
Frequently Asked Questions
What does the WaterPro Well Stop Sensor do?
It detects water and automatically shuts off the well pump to prevent flooding.
How is the sensor powered?
The sensor is powered by connecting it to a 230VAC power source.
What happens when water is detected?
The sensor activates an internal relay to disconnect power to the well pump, preventing flooding.
How do I reset the sensor after an alarm?
Press the reset pushbutton to restore normal operation.
Is the installation of the sensor complicated?
No, it features quick and easy installation by connecting in-line with a pressure switch.
What is the water detection level of the sensor?
The sensor detects water at a preset level of 1/16-inch.
Does the sensor require a control box?
No, it does not require a control box.

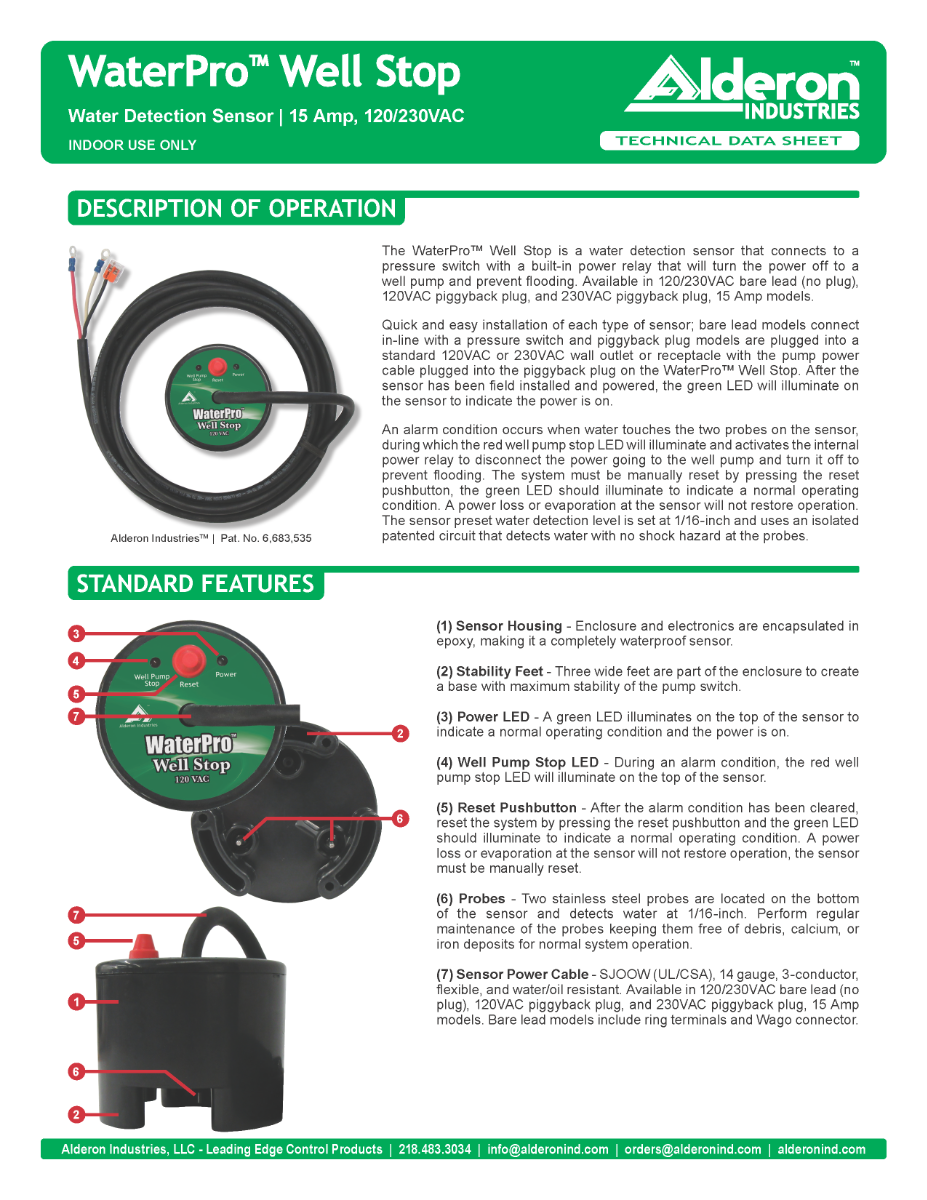

The WaterPro Well Stop Sensor is a 230VAC water detection sensor designed to help prevent flooding by shutting off power to a well pump when water is detected. This 10' bare lead model connects in-line with a pressure switch and includes a built-in power relay for pump shutoff.
When water touches the two probes, the red alarm LED illuminates and the internal relay disconnects power to the well pump. The sensor has a preset water detection level of 1/16 inch, uses an isolated circuit with no shock hazard at the probes, and requires manual reset after an alarm condition.
| Voltage | 230v |
|---|---|
| Model # | 8070 |
| Manufacturer | Aqua Science |
| Shipping Weight | 5 |
| Warranty | Three-Year Limited Warranty |
Write Your Own Review
What does this sensor do?
It detects water and disconnects power to the well pump to help prevent flooding.
What voltage is this model?
This is a 230VAC model.
How does this sensor connect?
This bare lead model connects in-line with a pressure switch.
What happens when water is detected?
The red LED illuminates and the internal power relay disconnects power going to the well pump.
What is the water detection level?
The preset water detection level is 1/16 inch.
How do I know the sensor has power?
The green LED illuminates to indicate the sensor is powered.
How is normal operation restored after an alarm?
The system must be manually reset by pressing the reset pushbutton.
Will operation return automatically after power loss or evaporation?
No. A power loss or evaporation at the sensor will not restore operation.

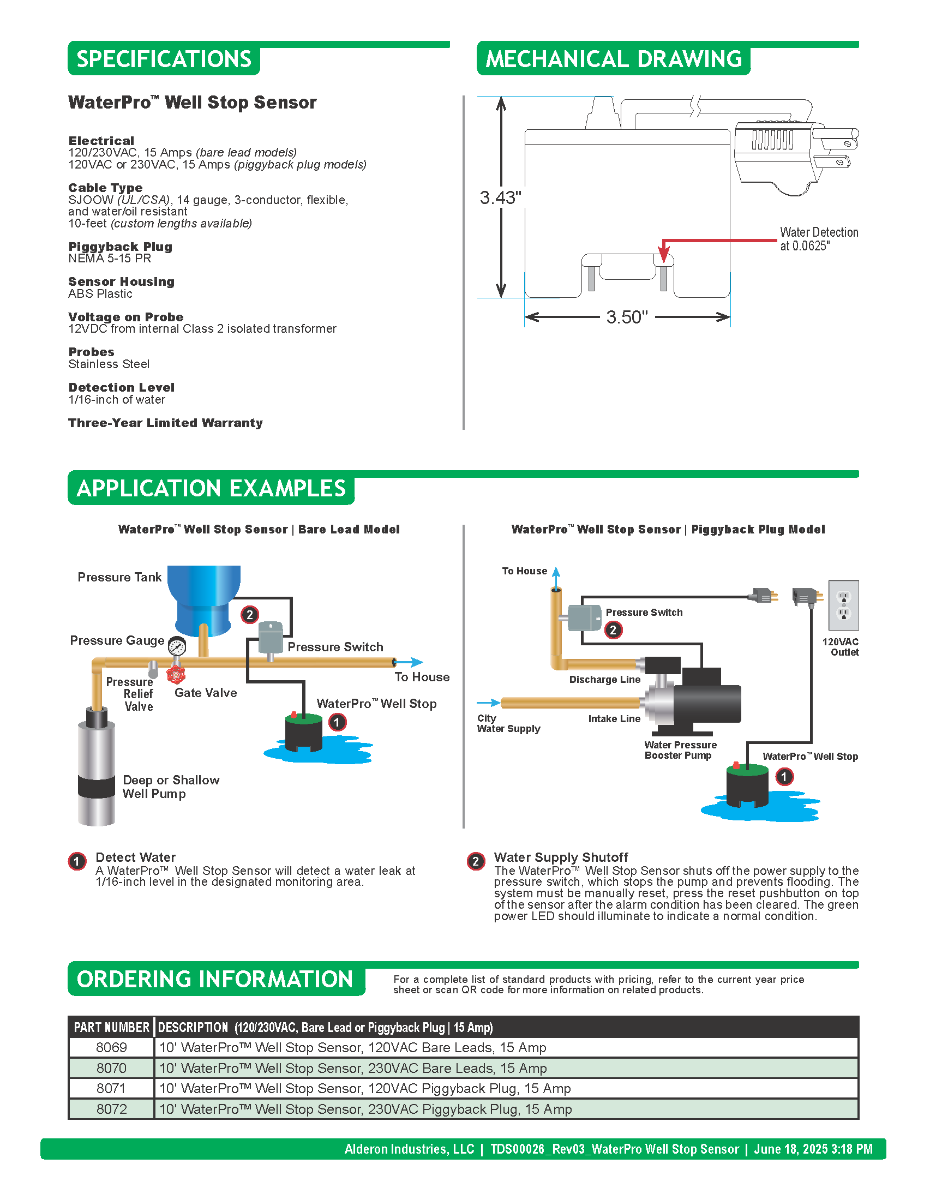

Installation Brief
This WaterPro Well Stop Sensor is installed in-line with a pressure switch and powered as a 230VAC bare lead model.
- Mount and field install the sensor according to the system layout.
- Connect the bare lead model in-line with the pressure switch.
- Power the sensor and confirm the green LED illuminates to show normal powered operation.
- After setup, verify the reset pushbutton and alarm indication are accessible for service.
