Goulds 5GS05412RC, 5GPM, 1/2HP, 230, 3 Wire, Reduced Flow, with Control Box 4" Stainless Steel Submersible Well Pump

Goulds 5GS05411CL, 5GPM, 1/2HP, 115V, 3 Wire, 4" Stainless Steel Submersible Well Pump

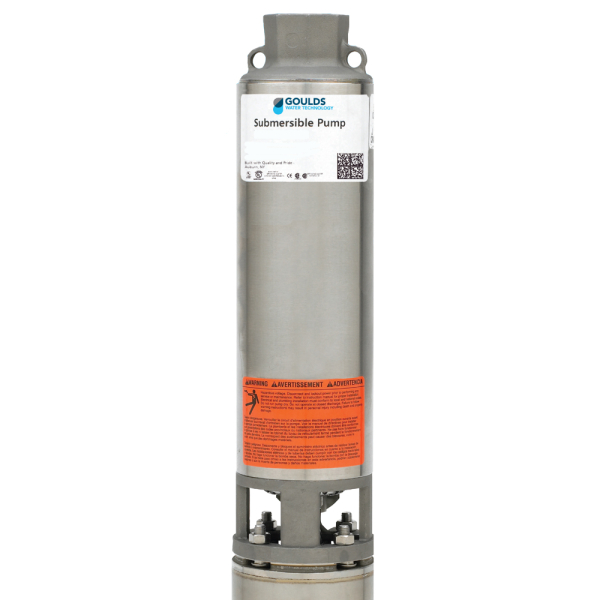

Goulds 5GS05421C, 5GPM,1/2HP, 115V, 2 Wire, 4" Stainless Steel Submersible Well Pump with Stainless Steal Male Adapter 1.25x1 with Shrinkwrap

Be the first to review this product

MSRP $2,638.00

Sale Price $1,319.00

50% OFF Factory Direct Saving

SKU#

5GS05421C-ssma-125-100-hskc-3

In stock

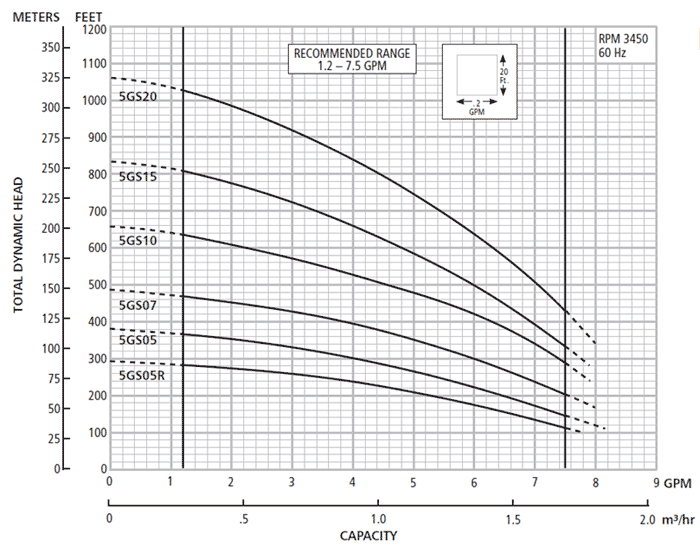

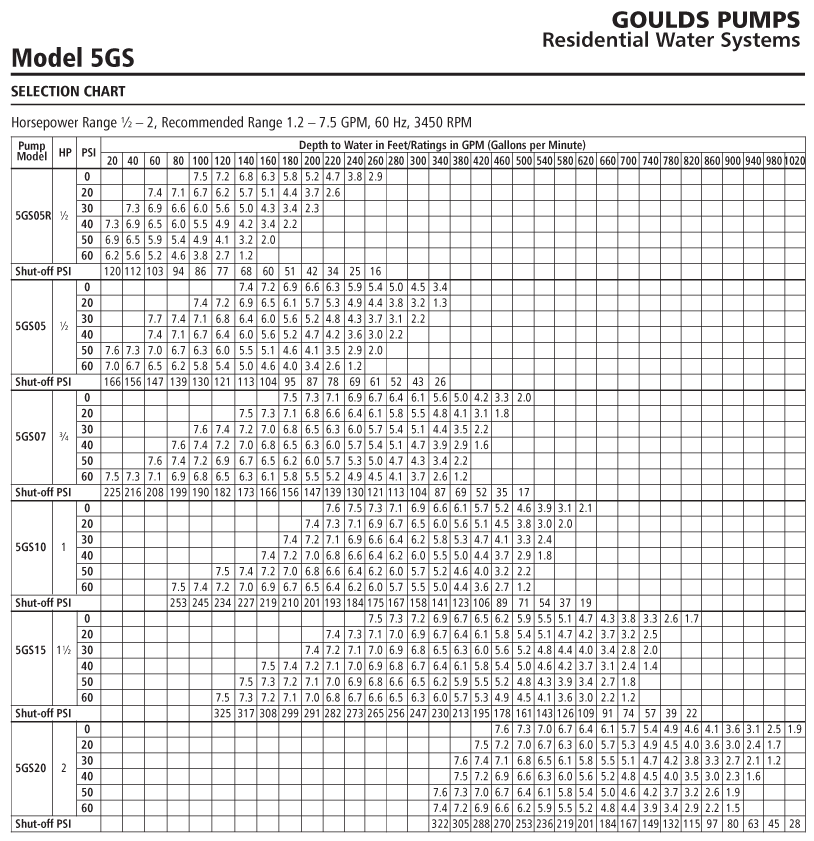

Performance Chart

Model 5GS

Horsepower range ½ - 2, Recommended Range 1.2 - 7.5 GPM, 60Hz, 3450 RPM

Pump Model	HP	PSI	Depth to Water in Feet/Ratings in GPM (Gallons per Minute)
Pump Model	HP	PSI	20	40	60	80	100	120	140	160	180	200	220	240	260	280	300	340	380	420	460	500	540	580	620	660	700	740	780	820	860	900	940	980	1020
5GS05R	1/2	0					7.5	7.2	6.8	6.3	5.8	5.2	4.7	3.8	2.9
		20			7.4	7.1	6.7	6.2	5.7	5.1	4.4	3.7	2.6
		30		7.3	6.9	6.6	6.0	5.6	5.0	4.3	3.4	2.3
		40	7.3	6.9	6.5	6.0	5.5	4.9	4.2	3.4	2.2
		50	6.9	6.5	5.9	5.4	4.9	4.1	3.2	2.0
		60	6.2	5.6	5.2	4.6	3.8	2.7	1.2
Shut-off PSI			120	112	103	94	86	77	68	60	51	42	34	25	16
5GS05	1/2	0							7.4	7.2	6.9	6.6	6.3	5.9	5.4	5.0	4.5	3.4
		20					7.4	7.2	6.9	6.5	6.1	5.7	5.3	4.9	4.4	3.8	3.2	1.3
		30			7.7	7.4	7.1	6.8	6.4	6.0	5.6	5.2	4.8	4.3	3.7	3.1	2.2
		40			7.4	7.1	6.7	6.4	6.0	5.6	5.2	4.7	4.2	3.6	3.0	2.2
		50	7.6	7.3	7.0	6.7	6.3	6.0	5.5	5.1	4.6	4.1	3.5	2.9	2.0
		60	7.0	6.7	6.5	6.2	5.8	5.4	5.0	4.6	4.0	3.4	2.6	1.2
Shut-off PSI			166	156	147	139	130	121	113	104	95	87	78	69	61	52	43	26
5GS07	3/4	0									7.5	7.3	7.1	6.9	6.7	6.4	6.1	5.6	5.0	4.2	3.3	2.0
		20							7.5	7.3	7.1	6.8	6.6	6.4	6.1	5.8	5.5	4.8	4.1	3.1	1.8
		30					7.6	7.4	7.2	7.0	6.8	6.5	6.3	6.0	5.7	5.4	5.1	4.4	3.5	2.2
		40				7.6	7.4	7.2	7.0	6.8	6.5	6.3	6.0	5.7	5.4	5.1	4.7	3.9	2.9	1.6
		50			7.6	7.4	7.2	6.9	6.7	6.5	6.2	6.0	5.7	5.3	5.0	4.7	4.3	3.4	2.2
		60	7.5	7.3	7.1	6.9	6.8	6.5	6.3	6.1	5.8	5.5	5.2	4.9	4.5	4.1	3.7	2.6	1.2
Shut-off PSI			255	216	208	199	190	182	173	166	156	147	139	130	121	113	104	87	69	52	35	17
5GS10	1	0											7.6	7.5	7.3	7.1	6.9	6.6	6.1	5.7	5.2	4.6	3.9	3.1	2.1
		20										7.4	7.3	7.1	6.9	6.7	6.5	6.0	5.6	5.1	4.5	3.8	3.0	2.0
		30									7.4	7.2	7.1	6.9	6.6	6.4	6.2	5.8	5.3	4.7	4.1	3.3	2.4
		40								7.4	7.2	7.0	6.8	6.6	6.4	6.2	6.0	5.5	5.0	4.4	3.7	2.9	1.8
		50						7.5	7.4	7.2	7.0	6.8	6.6	6.4	6.2	6.0	5.7	5.2	4.6	4.0	3.2	2.2
		60				7.5	7.4	7.2	7.0	6.9	6.7	6.5	6.4	6.2	6.0	5.7	5.5	5.0	4.4	3.6	2.7	1.2
Shut-off PSI						253	245	234	227	219	210	201	193	184	175	167	158	141	123	106	89	71	54	37	19
5GS15	1½	0													7.5	7.3	7.2	6.9	6.7	6.5	6.2	5.9	5.5	5.1	4.7	4.3	3.8	3.3	2.6	1.7
		20											7.4	7.3	7.1	7.0	6.9	6.7	6.4	6.1	5.8	5.4	5.1	4.7	4.2	3.7	3.2	2.5
		30										7.4	7.2	7.1	7.0	6.9	6.8	6.5	6.3	6.0	5.6	5.2	4.8	4.4	4.0	3.4	2.8	2.0
		40								7.5	7.4	7.2	7.1	7.0	6.9	6.8	6.7	6.4	6.1	5.8	5.4	5.0	4.6	4.2	3.7	3.1	2.4	1.4
		50							7.5	7.3	7.2	7.1	7.0	6.9	6.8	6.6	6.5	6.5	5.9	5.5	5.2	4.8	4.3	3.9	3.4	2.7	1.8
		60						7.5	7.3	7.2	7.1	7.0	6.8	6.7	6.6	6.5	6.3	6.0	5.7	5.3	4.9	4.5	4.1	3.6	3.0	2.2	1.2
Shut-off PSI								325	317	308	299	291	282	273	265	256	247	230	213	195	178	161	143	126	109	91	74	57	39	22
5GS20	2	0																			7.6	7.3	7.0	6.7	6.4	6.1	5.7	5.4	4.9	4.6	4.1	3.6	3.1	2.5	1.9
		20																		7.5	7.2	7.0	6.7	6.3	6.0	5.7	5.3	4.9	4.5	4.0	3.6	3.0	2.4	1.7
		30																	7.6	7.4	7.1	6.8	6.5	6.1	5.8	5.5	5.1	4.7	4.2	3.8	3.3	2.7	2.1	1.2
		40																	7.5	7.2	6.9	6.6	6.3	6.0	5.6	5.2	4.8	4.5	4.0	3.5	3.0	2.3	1.6
		50																7.6	7.3	7.0	6.7	6.4	6.1	5.8	5.4	5.0	4.6	4.2	3.7	3.2	2.6	1.9
		60																7.4	7.2	6.9	6.6	6.2	5.9	5.5	5.2	4.8	4.4	3.9	3.4	2.9	2.2	1.5
Shut-off PSI																		322	305	288	270	253	236	219	201	184	167	149	132	115	97	80	63	45	28

5GS05421C

Electrical Wire Gauge Required for a 0.5 HP, 2 Wire, 115V, 1 Phase Motor

Copper Wire Size	12 Gauge	10 Gauge	8 Gauge	6 Gauge	4 Gauge	2 Gauge
Distance from service entrance to motor	178 ft.	284 ft.	449 ft.	699 ft.	1114 ft.	1769 ft.

Overview

• Powered by CentriPro Motors The motors feature built-in lightning/surge protection. The 1/2HP - 1.5HP Motors come in 2-wire and 3-wire, The 2 HP -5HP Motors Come in 3-wire, and all models have on-winding thermal overloads.

• Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. The pump can be operated continuously without damage to the motor.

• Field Serviceable: Units have left-hand threads and are field serviceable with common tools and readily available repair parts.

• Sand Handling Design: Our face clearance, floating impeller stack has proven itself for over 40 years as a superior sand handling, durable pump design.

• FDA Compliant Non-Metallic Parts: Impellers, diffusers, and bearing spiders are constructed of glass-filled engineered composites. They are corrosion-resistant and non-toxic.

• Discharge Head/Check Valve: Cast 303 stainless steel for strength and durability. Two cast-in safety line loops for installer convenience. The built-in check valve is constructed of stainless steel and FDA-compliant BUNA rubber for abrasion resistance and quiet operation.

• Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor. Easy access to motor mounting nuts using a standard open-end wrench.

• Stainless Steel Casing: Polished stainless steel is strong and corrosion-resistant.

• Hex Shaft Design: Six-sided shafts for positive impeller drive.

• Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl® bearing spider for excellent abrasion resistance.
https://www.xylem.com/

Specifications

More Information
Phase	1
Voltage	115v
Wire Count	2 Wire
Motor Horsepower	0.5
Flow Rate	5

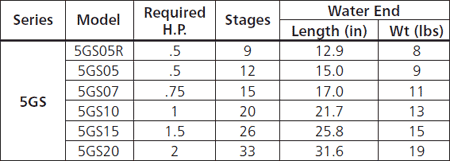

Stages	12
Discharge Connection	1.25

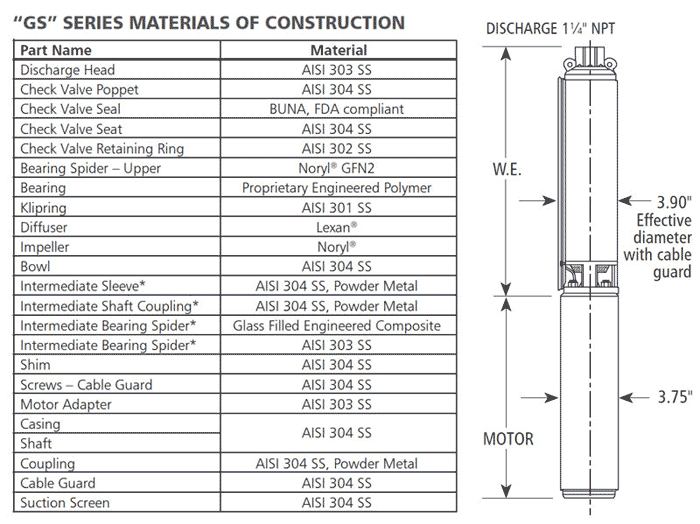

Material	Stainless Steel
Diameter	3.9 inch Diameter
Source	https://www.xylem.com/
Model #	5GS05421C
Manufacturer	Goulds
Performance Chart	Goulds Performance Chart 5GS
Shipping Weight	30

Reviews

Write Your Own Review

Performance Chart

Goulds 5GS05421C, 5GPM,1/2HP, 115V, 2 Wire, 4" Stainless Steel Submersible Well Pump with Stainless Steal Male Adapter 1.25x1 with Shrinkwrap

Additional Info

FAQs

What is the power requirement for this pump?

The Goulds 5GS05421C requires a 115V power supply and operates at 0.5 HP.

Is this pump suitable for continuous operation?

Yes, it is designed for continuous operation within the motor's working limits.

What materials are used in the construction of this pump?

The pump features a stainless steel casing and FDA-compliant non-metallic parts for durability and corrosion resistance.

Does this pump require a control box?

No, the Goulds 5GS05421C does not require a control box.

How does this pump handle sand?

It has a floating impeller stack design that is proven for superior sand handling.

What is the maximum flow rate of this pump?

The pump has a maximum flow rate of 5 gallons per minute.

What is the recommended wire gauge for installation?

The recommended wire gauge depends on the distance from the service entrance to the motor, ranging from 12 gauge for 178 ft to 2 gauge for 1769 ft.

Installation Tips

Installation Brief

Installing the Goulds 5GS05421C submersible well pump requires careful attention to electrical and mechanical connections.

Ensure the power supply is 115V and the correct wire gauge is used for the distance.
Connect the pump to the well casing using the stainless steel male adapter.
Secure the pump with safety line loops for stability.
Check the built-in check valve for proper operation.
Test the pump to ensure it operates within the recommended flow range.
