WellZone 3W-100 3-Wire 1-HP 230v Pressure Controller

Be the first to review this product

MSRP $1,610.00

Sale Price $805.00

50% OFF Factory Direct Saving

SKU#

1094604

In stock

3w-100

• Includes a 0-150 PSI pressure transducer
(Replaces pressure switch )
• LCD display with bar graph
• Pressure monitoring • Pump amps monitoring
• Pump on monitoring • Pump Run Time
• Pump Run Cycles• Adjustable pressure set points
• Start /Stop pressure set points
• High /Low pressure alarms
• Advanced functions • Dry Run protection
• Well recharge timer• Rapid cycle protection
• Water filter replacement notification
• Alarm history
• Five-year limited warranty on panel*
• Two-year limited warranty on pressure transducer

Overview

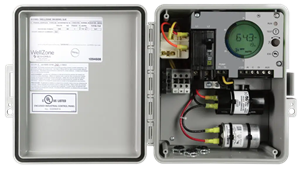

The WellZone 3W-100 is a digital pressure controller for single phase 3-wire submersible well pump applications. It uses a 0-150 PSI pressure transducer to monitor discharge pressure and turn the pump on and off based on adjustable start and stop setpoints. The LCD display shows system pressure, run status, hours run, and pump cycles, while built-in protection features include rapid cycling and dry run protection.

Specifications

More Information
Voltage	230v
Source	https://www.sjerhombus.com/
Model #	3w-100
Manufacturer	Aqua Science

Reviews

Write Your Own Review

Additional Info

FAQs

What type of pump is this controller designed for?

It is designed for single phase 3-wire submersible well pump applications.

What horsepower and voltage is the WellZone 3W-100 rated for?

This model is rated for 1 HP and 230V.

How does the controller monitor pressure?

It uses an included 0-150 PSI pressure transducer to monitor discharge pressure.

Are the pressure settings adjustable?

Yes. The start and stop pressure setpoints are adjustable.

What are the default pressure settings?

It is preprogrammed to start the pump below 40 PSI and stop it above 60 PSI.

What information is shown on the display?

The LCD display shows system pressure, run status, hours run, and pump cycles.

What pump protection features are included?

Built-in protection includes rapid cycling and dry run protection.

Does it provide alarm capability?

Yes. High and low pressure settings are available with an auxiliary alarm relay.

Installation Tips

Installation Brief

The WellZone 3W-100 is set up to provide pressure control for single phase 3-wire submersible well pump applications.

Confirm the controller matches the pump application and electrical rating.
Mount the control panel in an appropriate location for the installation.
Connect the included pressure transducer so it can monitor discharge pressure.
Complete the required pump and power wiring according to the product documentation and applicable codes.
Use the rotary control to review or adjust the start and stop pressure setpoints as needed.
Power the system and verify the LCD display shows operating status and pressure information.
