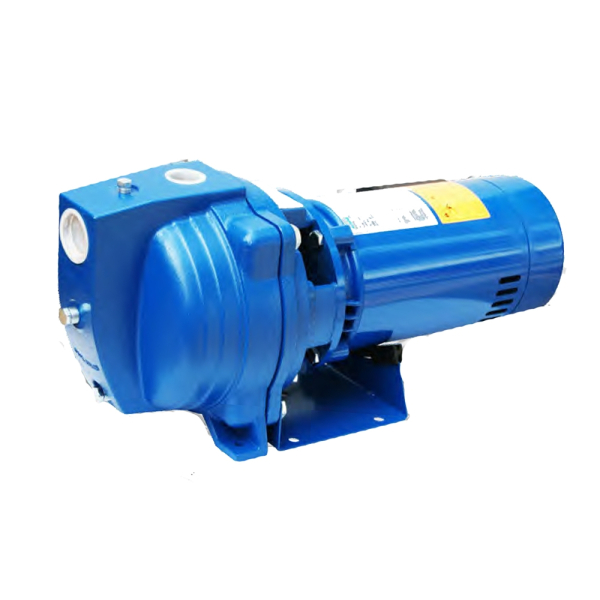

Shakti SPS5 1/2 HP Shallow Nose Jet Pump

Be the first to review this product

MSRP $833.28

Sale Price $416.64

50% OFF Factory Direct Saving

SKU#

SPS5

In stock

SPS5

Manufacturer: Aqua Science

The Shakti SPS5 1/2 HP Shallow Nose Jet Pump is engineered for efficiency and reliability. This self-priming centrifugal jet pump is perfect for shallow well applications, offering robust performance with its cast iron construction and stainless steel shaft.

Key Features

1/2 HP shallow nose self-priming centrifugal jet pump
Once initially primed, automatically re-primes under lift conditions
Cast iron construction with stainless steel shaft
Thermoplastic impeller, diffuser, nozzle, and venturi
Back pull out design allows motor removal without dismantling the pump
Clean out plug helps unclog the nozzle in the pump
Single-phase motor, 60 Hz, 3450 RPM, 115V-230V
Built-in overload with automatic reset

Specifications

Model #: SPS5

Motor Horsepower: 0.5 HP

Amps: 10.8/5.4

Material: Cast Iron

Nose: Single

Well Depth: 0 - 25 feet

Shipping Weight: 47 lbs

Performance

View Performance Chart

FAQs

What type of pump is the Shakti SPS5?

It is a 1/2 HP shallow nose self-priming centrifugal jet pump.

Does the SPS5 self-prime?

Yes. Once initially primed, it is engineered to automatically re-prime itself under lift conditions.

What voltage does this pump support?

It is listed for 115V-230V operation.

What motor specifications are listed for the SPS5?

It has a single-phase, 60 Hz, 3450 RPM motor with start/run capacitor.

What materials are used in the pump construction?

It features a cast iron pump body, stainless steel shaft, and thermoplastic impeller, diffuser, nozzle, and venturi.

What service feature does the SPS5 include?

It has a back pull out design that allows motor removal without dismantling the pump.

Does this pump include overload protection?

Yes. It has built-in overload protection with automatic reset.

What feature helps with nozzle cleaning?

A clean out plug helps unclog the nozzle in the pump.

Additional Resources

Download Product Literature

Overview

The Shakti SPS5 is a 1/2 HP shallow nose self-priming centrifugal jet pump designed for dependable water pumping performance. Once initially primed, it is engineered to automatically re-prime itself under lift conditions. This model features a cast iron pump body, stainless steel shaft, and thermoplastic impeller, diffuser, nozzle, and venturi. It also includes a back pull out design for service access, a clean out plug to help unclog the nozzle, and a single-phase 115V-230V motor with start/run capacitor.

Specifications

More Information
Motor Horsepower	0.5
Nose	Single
Material	Cast Iron
Well Depth	0 - 25
Source	https://www.shaktipumps.com/
Model #	SPS5
Manufacturer	Aqua Science
Shipping Weight	47

Reviews

Write Your Own Review

Performance Chart

Shakti SPS5 1/2 HP Shallow Nose Jet Pump

Additional Info

Product Literature

Aqua Science Shakti Catalog

(Size: 2.99 MB)

Shakti Jet Document

(Size: 5.8 MB)

SPS & SPI Jet Pumps

(Size: 2.99 MB)

FAQs

What type of pump is the Shakti SPS5?

It is a 1/2 HP shallow nose self-priming centrifugal jet pump.

Does the SPS5 self-prime?

Yes. Once initially primed, it is engineered to automatically re-prime itself under lift conditions.

What voltage does this pump support?

It is listed for 115V-230V operation.

What motor specifications are listed for the SPS5?

It has a single-phase, 60 Hz, 3450 RPM motor with start/run capacitor.

What materials are used in the pump construction?

It features a cast iron pump body, stainless steel shaft, and thermoplastic impeller, diffuser, nozzle, and venturi.

What service feature does the SPS5 include?

It has a back pull out design that allows motor removal without dismantling the pump.

Does this pump include overload protection?

Yes. It has built-in overload protection with automatic reset.

What feature helps with nozzle cleaning?

A clean out plug helps unclog the nozzle in the pump.

Installation Tips

Installation Brief

The Shakti SPS5 is a self-priming jet pump that should be installed with correct piping connections and initial priming before operation.

Place the pump on a stable surface in the intended setup position.
Connect the suction line to the 1 1/2 NPT suction connection and the discharge line to the 1 inch NPT discharge connection.
Check that all connections are secure before startup.
Prime the pump initially before operating it.
Start the pump and inspect for leaks while confirming normal operation.
