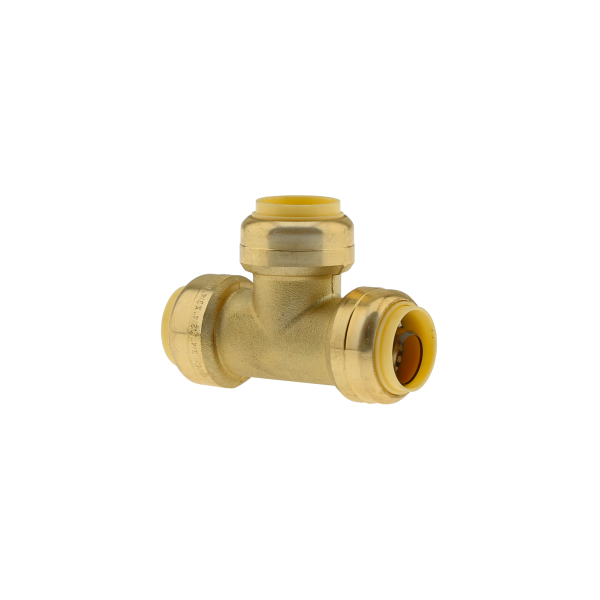

No Lead Brass Quick Connect Tee

Be the first to review this product

MSRP $28.66

Sale Price $14.33

50% OFF Factory Direct Saving

BPF

Model #: BPF

Categories: Push-Fit Fittings & Components, Tees and Crosses, No Lead Brass, Stainless Steel, Plastic & Quick Connect Fittings, Pumps, Tanks & Well Components, Products, Root Catalog

Material: Push-Fit

Potable Water and Hydronic heating systems - approved for use for both underground and behind walls with/without access panels.
New residential and commercial construction - a fast easy way to plumb jobs.
Excellent for wet, hazardous and dry repairs of existing plumbing. Excellent for wet repairs where a system is hard to drain making soldering difficult with no drying time required, a safe method to repair piping in hard to access situations where open flame could be a fire hazard for soldering.

Features

Connects Copper, CPVC and PEX pipe in any combination.
For tube sizes 1/2" (0.625" O.D.) 3/4" (0.875" O.D.), 1" (1.125" O.D.)
Fittings can be rotated after assembly for easier installation in tight spaces - No tools required.
No soldering, flux, clamps, unions or glue.
High quality materials including Stainless Steel Gripper ring and EPDM O-ring.
Integral tube liner for PEX installations.
Easy to disconnect if needed by using a special disconnect tool.

Ratings

Max. Working Pressure @ Max. Working Temp.
200 psi @ 200°F - Water
Fittings are tested and approved in accordance with: ASSE 1061-2006 and NSF 61 & 372

Overview

The No Lead Brass Quick Connect Tee is a push-fit fitting designed for use with copper tubing, PEX tubing, and CPVC pipe. It installs without soldering, crimping, or solvent welding, making it a fast option for new plumbing work and repairs. The fitting rotates after assembly for easier alignment and is suitable for domestic hot and cold water systems, potable water, and hydronic heating applications.

Specifications

More Information
Material	Push-Fit
Model #	BPF
Manufacturer	Aqua Science

Reviews

Write Your Own Review

FAQs

What pipe materials can this tee connect?

It connects copper tubing, PEX tubing, and CPVC pipe in any combination.

What sizes are available for this tee?

It supports 1/2 inch, 3/4 inch, and 1 inch tube sizes.

Do I need special tools to install it?

No. The push-fit design allows installation without special tools.

Does it require soldering or glue?

No. It does not require soldering, crimping, solvent welding, flux, clamps, unions, or glue.

Can the fitting rotate after assembly?

Yes. It can be rotated after assembly for easier installation in tight spaces.

Is it suitable for hot and cold water systems?

Yes. It is designed for domestic hot and cold water systems.

Can it be used behind walls or underground?

Yes. It is approved for use underground and behind walls with or without access panels.

What is the pressure and temperature rating?

It is rated for 200 psi at 200°F for water.

Installation Tips

Installation Brief

This quick connect tee uses a push-fit design for fast setup on compatible copper, PEX, and CPVC pipe.

Select the correct tee size for the tubing being connected.
Confirm the pipe material is copper, PEX, or CPVC.
Ensure the pipe ends are clean and free from debris.
Push the pipe fully into each fitting socket until it reaches the internal stop.
Rotate the fitting after assembly if needed for final alignment.
