Goulds Balanced Flow Constant Pressure System, 5HP Motor 25GPM @60PSI - 395ft
SKU#
25GP3050
In stock
Manufacturer: Goulds
Categories: Goulds Constant Pressure Systems, Pumps, Tanks & Well Components, Products, Root Catalog
Model #: 25GP3050
Motor Horsepower: 5
Phase: 3
Amps: 16.6
Flow Rate: 25 GPM
Warranty: 3 Year Limited
Wire Count: 3 Wire
Well Depth: 395 ft
Shipping Weight: 100 lbs
Universal Product Code: 69766653423
- Simple, fast sizing and installation.
- Range curves and selection charts generated from actual R&D tests.
- Kits configured for 30 Hz minimum and 80 Hz maximum operation.
- Wiring is as easy as standard three-wire control box: (1) L1, L2 and Ground in from power supply (2) Red, Yellow, Black and Ground out to motor.
- Pressure is factory preset at 50 psi with simple, fast, field adjustability for higher pressures.
- Three phase output to motor reduces wire cost.
- Goulds model GS features the Guardian bearing system and field proven sand and abrasive handling floating stack design.
- New – a Switch Input for connecting a pressure switch or float switch.
- New – Grounding provisions for transducer and transducer cable.
- New, more versatile user interface board.
- Provides switch connection for optional pressure or level switch.
- New current limit settings for all new CentriPro motors.
- Dry well sensitivity switch.
- Broken pipe protection.
- 5 or 20 PSI pressure drop restart switch.
- Transducer better protected from transient power surges.
Transducer – NEW AND IMPROVED:
- Larger port orifice to prevent clogging.
- Case to electronics surge protection.
- All Stainless Steel construction.
- Pressure surge capability without the use of a pressure snubber.
- Case coupled noise immunity.
- Reverse voltage protection.
- Line to electronics ground surge protection on all lines.
- Transducer cable has ground wire built-in.
- Ground clamp provided for transducer to cable grounding.

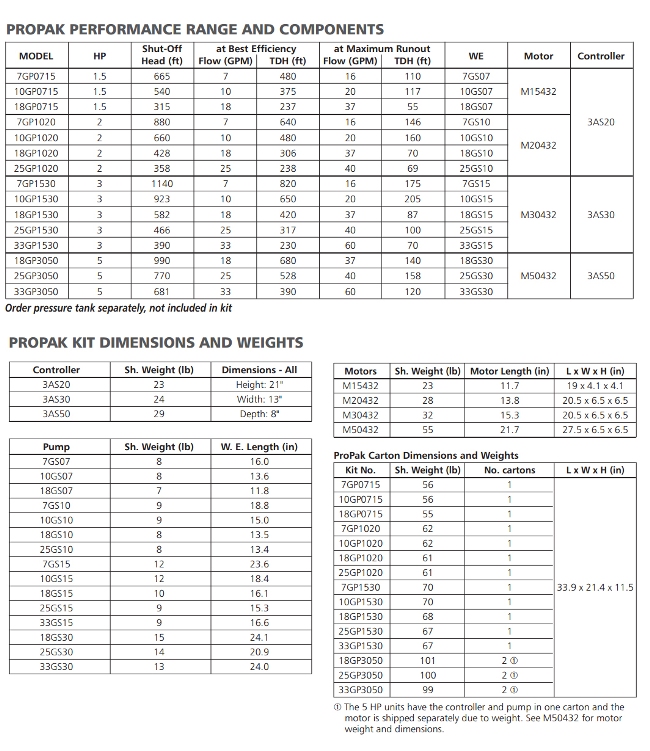

Performance Chart:
Wire Chart:
Check items to add to the cart or
Goulds ProPak Kit include:
- CentriPro Three Phase Motor 5 HP, 230 V - M50432
- CentriPro Aquavar SOLO™ Controller with Transducer - 3AS50
- Goulds Pumps GS Water End (pump) - 25GS30 - (1 1/4" Female NPT discharge)
The Gould ProPak has several advantages over a traditional submersible pump system:
- City-like water pressure at every faucet no matter the demand
- Lower electricity usage by 50% due to the controller converting single phase to 3 phase
- 0-100 PSI Pressure Setting with finger controlled adjustments
- Only a small inline pressure tank is needed, no large bulky floor stand models are required
- Wall mounted controller saves space and is Nema 3 rated and can be mounted outside
- Designed for continuous operation: Ideal for larger homes, irrigation systems, tight installation clearance issues, and geothermal applications.
- High quality Goulds GS stainless steel pump with sand and abrasion resistant design
- Self Diagnostic Controls check for Dry Well Ground Fault, Short Circuit Disconnected Lead, High Pressure Sensor, Temperature Fault
- Smaller gauge wire is required
| Phase | 3 |
|---|---|
| Wire Count | 3 Wire |
| Motor Horsepower | 5 |
| Flow Rate | 25 |
| Stages | 15 |
| Well Depth | 395 |
| Source | https://www.xylem.com/ |
| Model # | 25GP3050 |
| Manufacturer | Goulds |
| Performance Chart | None |
| Shipping Weight | 100 |
| Warranty | 3 Year Limited |
