Goulds Balanced Flow Constant Pressure System, 3HP Motor 25GPM @60PSI - 170ft

CLICK HERE TO CONFIRM THE PRICE
MSRP $6,067.00
Sale Price $4,000.00
34% OFF Factory Direct Saving
SKU#
25GP1530
In stock
Free Shipping
25GP1530
Goulds Balanced Flow Constant Pressure System, 3HP Motor 25GPM @60PSI - 170ft - 25GP1530

Manufacturer: Goulds

Categories: Goulds Constant Pressure Systems, Pumps, Tanks & Well Components, Products, Root Catalog

Model #: 25GP1530

Motor Horsepower: 3

Phase: 3

Amps: 10.9

Flow Rate: 25

Warranty: 3 Year Limited

Wire Count: 3 Wire

Well Depth: 170

Shipping Weight: 67

Universal Product Code: 69766653422

  • Simple, fast sizing and installation.
  • Range curves and selection charts generated from actual R&D tests.
  • Kits configured for 30 Hz minimum and 80 Hz maximum operation.
  • Wiring is as easy as standard three-wire control box: (1) L1, L2 and Ground in from power supply (2) Red, Yellow, Black and Ground out to motor.
  • Pressure is factory preset at 50 psi with simple, fast, field adjustability for higher pressures.
  • Three phase output to motor reduces wire cost.
  • Goulds model GS features the Guardian bearing system and field proven sand and abrasive handling floating stack design.
  • New – a Switch Input for connecting a pressure switch or float switch.
  • New – Grounding provisions for transducer and transducer cable.

Balanced Flow Controller – NEW FEATURES:

  • New, more versatile user interface board.
  • Provides switch connection for optional pressure or level switch.
  • New current limit settings for all new CentriPro motors.
  • Dry well sensitivity switch.
  • Broken pipe protection.
  • 5 or 20 PSI pressure drop restart switch.
  • Transducer better protected from transient power surges.

Transducer – NEW AND IMPROVED:

  • Larger port orifice to prevent clogging.
  • Case to electronics surge protection.
  • All Stainless Steel construction.
  • Pressure surge capability without the use of a pressure snubber.
  • Case coupled noise immunity.
  • Reverse voltage protection.
  • Line to electronics ground surge protection on all lines.
  • Transducer cable has ground wire built-in.
  • Ground clamp provided for transducer to cable grounding.

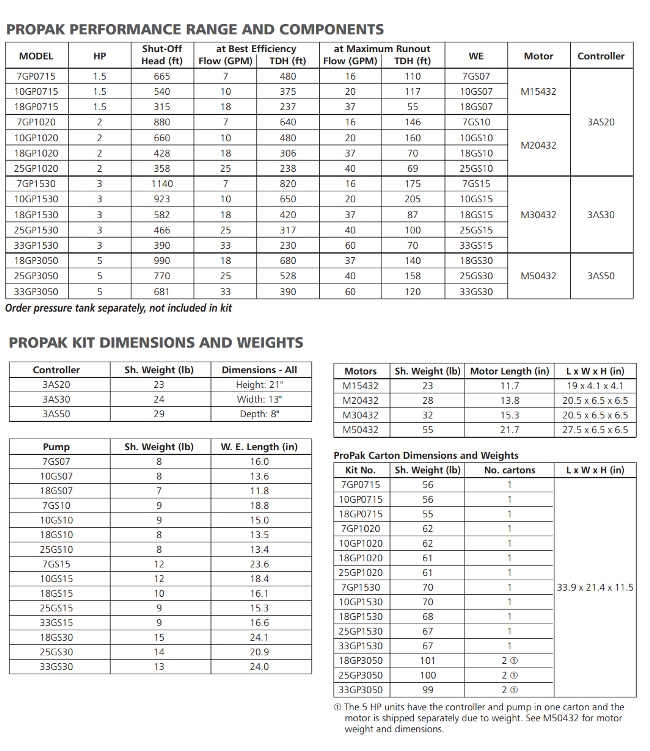

Performance Chart:

Free Shipping: Yes

The Gould ProPak has several advantages over a traditional submersible pump system:

  • City-like water pressure at every faucet no matter the demand
  • Lower electricity usage by 50% due to the controller converting single phase to 3 phase
  • 0-100 PSI Pressure Setting with finger controlled adjustments
  • Only a small inline pressure tank is needed, no large bulky floor stand models are required
  • Wall mounted controller saves space and is Nema 3 rated and can be mounted outside
  • Designed for continuous operation:  Ideal for larger homes, irrigation systems, tight installation clearance issues, and geothermal applications.
  • High quality Goulds GS stainless steel pump with sand and abrasion resistant design
  • Self Diagnostic Controls check for Dry Well Ground Fault, Short Circuit Disconnected Lead, High Pressure Sensor, Temperature Fault
  • Smaller gauge wire is required


Goulds ProPak Kit include:

  • CentriPro Three Phase Motor 3 HP, 230 V - M30432
  • CentriPro Aquavar SOLO™ Controller with Transducer - 3AS30
  • Goulds Pumps GS Water End (pump) - 25GS15 - (1 1/4" Female NPT discharge)
More Information
Phase3
Wire Count3 Wire
Motor Horsepower3
Flow Rate25
Stages 9
Well Depth170
Sourcehttps://www.xylem.com/
Model #25GP1530
ManufacturerGoulds
Shipping Weight67
Warranty3 Year Limited
Write Your Own Review
You're reviewing:Goulds Balanced Flow Constant Pressure System, 3HP Motor 25GPM @60PSI - 170ft
Your Rating
Goulds Balanced Flow Constant Pressure System, 3HP Motor 25GPM @60PSI - 170ft
What is the flow rate of this system?
The Goulds Balanced Flow System has a flow rate of 25 gallons per minute.
What type of motor does this system use?
It uses a CentriPro Three Phase Motor with 3 HP and 230 V.
Is a large pressure tank required?
No, only a small inline pressure tank is needed, saving space.
Can the pressure settings be adjusted?
Yes, the pressure is factory preset at 50 psi but can be adjusted easily in the field.
What are the benefits of the Aquavar SOLO™ Controller?
It reduces electricity usage by 50% and allows for city-like water pressure at every faucet.
Is the system suitable for outdoor installation?
Yes, the wall-mounted controller is Nema 3 rated and can be mounted outside.
What safety features are included?
The system includes dry well sensitivity, broken pipe protection, and surge protection for the transducer.

Installation Brief

Installing the Goulds Balanced Flow Constant Pressure System is straightforward but may require a licensed professional for electrical connections.

  1. Mount the controller on a suitable wall, ensuring it is Nema 3 rated for outdoor use if necessary.
  2. Connect L1, L2, and Ground from the power supply to the controller.
  3. Connect Red, Yellow, Black, and Ground from the controller to the motor.
  4. Adjust the pressure settings as needed using the user interface board.
Important:
  • Ensure all electrical connections comply with local codes.
  • Verify that the system is properly grounded to prevent electrical faults.
