SJE Wellzone 2 Wire 115-230v Single Phase Pump Controller

Rating:

100% of 100

1 Review Add Your Review

MSRP $1,150.00

Sale Price $575.00

50% OFF Factory Direct Saving

SKU#

1076886

In stock

Features
Includes a 0-150 PSI pressure transducer (No pressure switch needed)
LCD display with bar graphPressure reading
Pump amp reading
Pump on indicator
Adjustable pressure set pointsStart /Stop pressure set points
High /Low pressure alarms
Advanced functionsDry Run protection
Well recharge timer
Rapid cycle protection
Water filter replacement notification
Alarm history

Overview

The WellZone® 2-wire digital controller provides pressure control for single phase 2-wire submersible well pump applications. Works with .5 HP 115 Volt and Up to 1.5 HP on 230 Volt Motors It uses a 0-150 PSI pressure transducer to monitor the discharge pressure and turns the pump ON and OFF according to the Start and Stop setpoints. The LCD display is visible through the clear cover of the enclosure to allow for quick view of the system pressure, run status, hours run and pump cycles. The rotary button provides the user with a simple navigation method through the menu and program settings. It features built in pump protection including rapid cycling and dry run. It is preprogrammed to run the pump as the pressure drops below 40 PSI and stop as the pressure rises above 60 PSI. High & Low pressure settings are available with an auxiliary alarm relay.

Specifications
NEMA 4X enclosure 8 x 6 x 4 inches (20.32 x 15.24 x 10.16 cm) for indoor or outdoor use with integral padlockable latch for added safety.
Pump run green LED indicator
Pump test switch for manual control of the pump
Menu rotary encoder/selector switch
Menu ESC button
Auxiliary alarm contacts
Digital input for optional floor sensor or float switch
LCD display
Ground lug
Circuit breaker (20A, 2 pole)
cUL/US Listed
5-year limited warranty

Specifications

More Information
Voltage	230v
Source	https://www.sjerhombus.com/
Manufacturer	Aqua Science

Reviews 1

Write Your Own Review

Additional Info

Product Literature

Wellzone Pressure Controller

(Size: 0.68 MB)

Wellzone Pressure Controller Installation and Operation Manual

(Size: 2.93 MB)

FAQs

What types of pumps is the SJE Wellzone controller compatible with?

It is designed for single phase 2-wire submersible well pump applications, compatible with .5 HP 115 Volt and up to 1.5 HP on 230 Volt motors.

How does the pressure control work?

The controller uses a 0-150 PSI pressure transducer to monitor discharge pressure, turning the pump on and off according to set start and stop points.

What safety features are included?

It includes dry run protection, rapid cycle protection, and high/low pressure alarms with an auxiliary alarm relay.

Is the controller suitable for outdoor use?

Yes, it features a NEMA 4X enclosure suitable for indoor or outdoor use.

What kind of display does the controller have?

It has an LCD display visible through the clear cover, showing system pressure, run status, hours run, and pump cycles.

Does the controller require a pressure switch?

No, it includes a 0-150 PSI pressure transducer, eliminating the need for a separate pressure switch.

What is the warranty period for this product?

The SJE Wellzone controller comes with a 5-year limited warranty.

Installation Tips

Installation Brief

The SJE Wellzone 2 Wire Pump Controller is designed for straightforward installation with single phase 2-wire submersible well pumps.

Mount the NEMA 4X enclosure securely in a suitable location.
Connect the pump wires to the controller as per the wiring diagram.
Set the desired start and stop pressure points using the rotary button.
Ensure all connections are secure and test the system using the pump test switch.

Important:

Ensure power is disconnected before installation.
Installation should be performed by a qualified professional to ensure safety and compliance with local regulations.

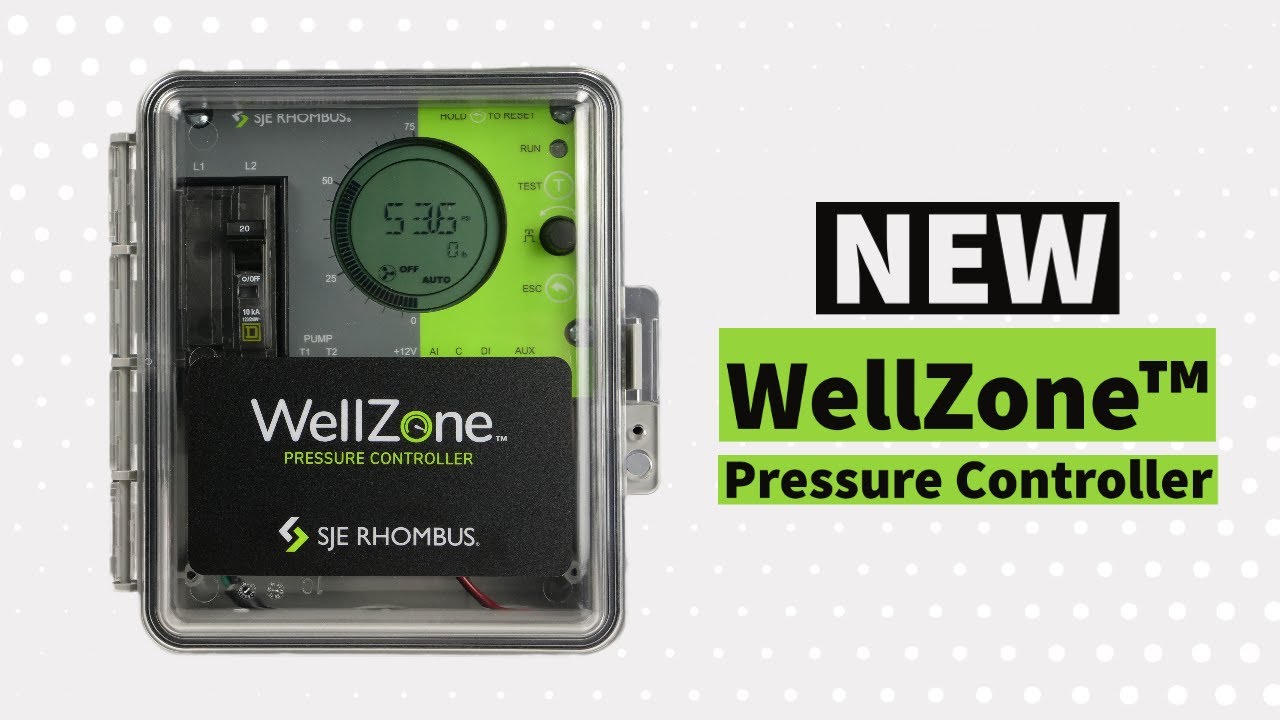

Video
