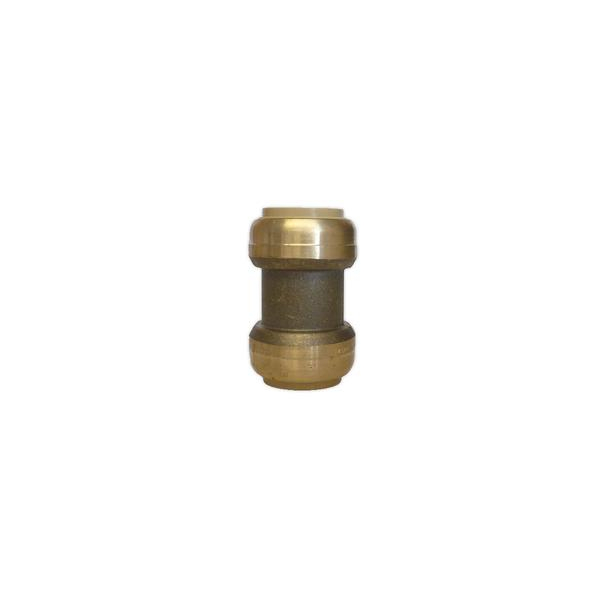

No Lead Brass Quick Connect Coupling

CLICK HERE TO CONFIRM THE PRICE
MSRP $16.74
Sale Price $8.37
50% OFF Factory Direct Saving
SKU#
BPF
In stock
Only %1 left
BPF

Categories: Push-Fit Fittings & Components, Couplings, No Lead Brass, Stainless Steel, Plastic & Quick Connect Fittings, Pumps, Tanks & Well Components, Products, Root Catalog

Material: Push-Fit

Shipping Weight: 0.25 lbs

Universal Product Code: 777808440894

  • Potable Water and Hydronic heating systems - approved for use for both underground and behind walls with/without access panels.
  • New residential and commercial construction - a fast easy way to plumb jobs.
  • Excellent for wet, hazardous and dry repairs of existing plumbing. Excellent for wet repairs where a system is hard to drain making soldering difficult with no drying time required, a safe method to repair piping in hard to access situations where open flame could be a fire hazard for soldering.

Features:

  • Connects Copper, CPVC and PEX pipe in any combination.
  • For tube sizes 1/2" (0.625" O.D.) 3/4" (0.875" O.D.), 1" (1.125" O.D.)
  • Fittings can be rotated after assembly for easier installation in tight spaces - No tools required.
  • No soldering, flux, clamps, unions or glue.
  • High quality materials including Stainless Steel Gripper ring and EPDM O-ring.
  • Integral tube liner for PEX installations.
  • Easy to disconnect if needed by using a special disconnect tool.

Ratings:

  • Max. Working Pressure @ Max. Working Temp.
  • 200 psi @ 200°F - Water
  • Fittings are tested and approved in accordance with: ASSE 1061-2006 and NSF 61 & 372

The No Lead Brass Quick Connect Coupling is a push-fit fitting for connecting copper, CPVC, and PEX pipe in any combination. It installs without special tools and does not require soldering, flux, clamps, unions, or glue. Suitable for potable water and hydronic heating systems, it can be used in new residential and commercial construction as well as wet, hazardous, and dry plumbing repairs.

More Information
MaterialPush-Fit
Model #BPF
ManufacturerAqua Science
Write Your Own Review
You're reviewing:No Lead Brass Quick Connect Coupling
Your Rating
What pipe materials can this coupling connect?
It connects copper, CPVC, and PEX pipe in any combination.
What tube sizes does it fit?
It fits 1/2 inch (0.625 inch O.D.), 3/4 inch (0.875 inch O.D.), and 1 inch (1.125 inch O.D.) tube sizes.
Are special tools required for installation?
No. Installation does not require special tools.
Does it require soldering or glue?
No. It does not require soldering, flux, clamps, unions, or glue.
Can the fitting rotate after assembly?
Yes. It can be rotated after assembly for easier installation in tight spaces.
Can this coupling be disconnected later?
Yes. It can be disconnected using a special disconnect tool.
What systems is it suitable for?
It is suitable for potable water and hydronic heating systems, including domestic hot and cold water systems.
Where can this fitting be installed?
It is approved for use underground and behind walls with or without access panels.

Installation Brief

This quick connect coupling is designed for fast push-fit connection of compatible copper, CPVC, and PEX pipe.

  1. Select the correct coupling size for the tubing being connected.
  2. Confirm the pipe is copper, CPVC, or PEX and prepare the pipe ends for assembly.
  3. Push each pipe end into the coupling until the connection is fully seated.
  4. Rotate the fitting as needed to help align the installation in tight spaces.
  5. Check that both sides are secure before placing the system into service.
