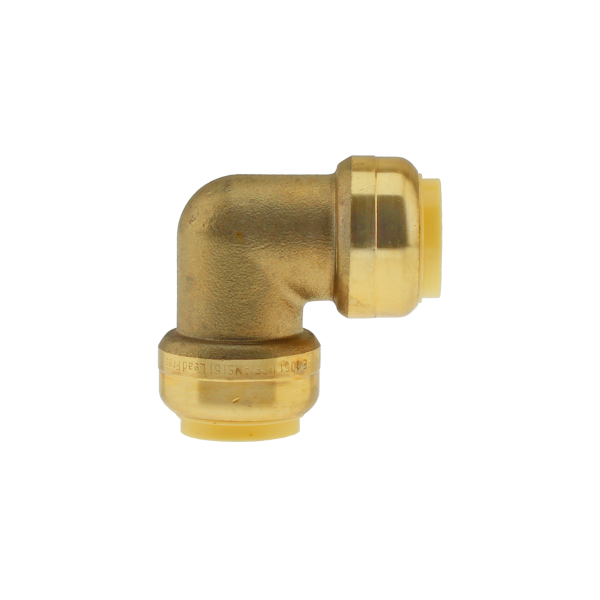

No Lead Brass 90 Degree Elbow Quick Connect Fitting

Model #: BPF

Material: Push-Fit

Universal Product Code: 777808440979

• Potable Water and Hydronic heating systems - approved for use both underground and behind walls with/without access panels.
• New residential and commercial construction - a fast, easy way to plumb jobs.
• Excellent for wet, hazardous, and dry repairs of existing plumbing. Ideal for wet repairs where a system is hard to drain, making soldering difficult with no drying time required. A safe method to repair piping in hard-to-access situations where open flame could be a fire hazard for soldering.

Features:

• Connects Copper, CPVC, and PEX pipe in any combination.
• For tube sizes 1/2" (0.625" O.D.), 3/4" (0.875" O.D.), 1" (1.125" O.D.).
• Fittings can be rotated after assembly for easier installation in tight spaces - No tools required.
• No soldering, flux, clamps, unions, or glue needed.
• High-quality materials including Stainless Steel Gripper ring and EPDM O-ring.
• Integral tube liner for PEX installations.
• Easy to disconnect if needed by using a special disconnect tool.

Ratings:

• Max. Working Pressure @ Max. Working Temp.
• 200 psi @ 200°F - Water
• Fittings are tested and approved in accordance with: ASSE 1061-2006 and NSF 61 & 372
