Goulds Balanced Flow Constant Pressure System, 3HP Motor 10GPM at 60PSI - 540ft

Be the first to review this product

MSRP $11,793.50

Sale Price $5,896.75

50% OFF Factory Direct Saving

SKU#

10GP3030

In stock

Product Specifications

Model #: 10GP3030

Manufacturer: Goulds

Warranty: 3 Year Limited

Motor Horsepower: 3 HP

Flow Rate: 10 GPM

Volts: 230V

Phase: 3

Wire Count: 3 Wire

Well Depth: 540 ft

Key Features

Simple, fast sizing and installation, including checking outlet or pipe size for a proper fit.
Range curves and selection charts generated from actual R&D tests for comparing similar well pumps.
Kits configured to run within a 30 Hz minimum and 80 Hz maximum operating frequency range.
Wiring is as easy as standard three-wire control box: (1) L1, L2 and Ground in from power supply (2)Red, Yellow, Black and Ground out to motor; setup help is also available on YouTube.
Pressure is factory preset at 50 psi with simple, fast, field adjustability for higher pressures, helping reduce pressure fluctuation pain points that can add system strain.
Three phase output to motor reduces wire cost.
Goulds model GS features the Guardian bearing system to protect components inside the pump from sand and abrasives and help extend service life.
New – a Switch Input for connecting a pressure switch or float switch.
New – Grounding provisions for transducer and transducer cable.

Overview

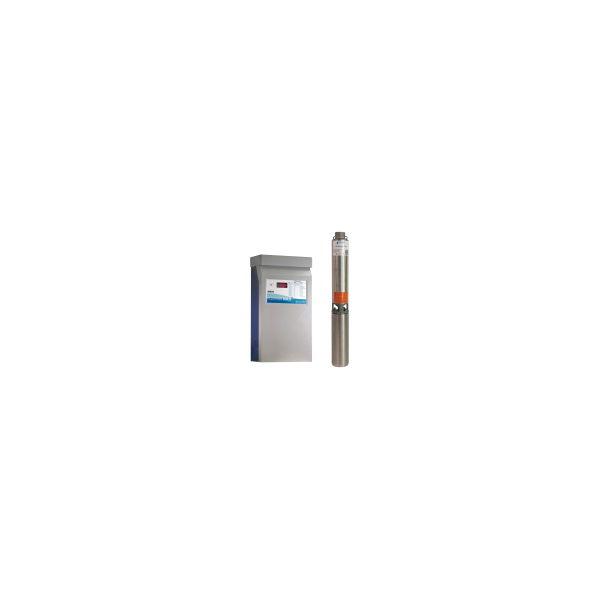

Goulds Balanced Flow Constant Pressure System model 10GP3030 is a submersible well pump system ProPak kit with a 3 HP, 230V three-phase CentriPro motor, Aquavar SOLO controller with transducer, and Goulds GS water.

system includes AquaScience 8% Crosslink Resin.

Designed for residential and agricultural water wells, it helps customers find the right fit for well depth, pressure needs, and pressure tanks across a wide range of well pump applications and other submersible pump setups. This system is rated for 10 GPM at 60 PSI and well depths up to 540 ft. It is designed to provide consistent water pressure and reliable pressure for agricultural uses and irrigation, helping support clean water delivery where steady performance matters. Its design enables operation with a smaller inline pressure tank, and it features a wall-mounted NEMA 3 controller that can be mounted outside.

Balanced Flow Controller – NEW FEATURES for Higher Pressures:

New, more versatile user interface board that combines key components in one system to simplify installation
Provides switch connection for an optional pressure or level switch as a useful step when you plan the setup, and you can hear setup guidance through support resources if needed
New current limit settings for all new CentriPro motors
Built-in protections include dry-well sensitivity for more reliable operation
Built-in protections also include broken pipe detection for easier troubleshooting
These safeguards help support reliable working operation and make troubleshooting easier, with customer feedback helping improve support when customers need it.
5 or 20 PSI pressure drop restart switch
Transducer better protected from transient power surges

Transducer – NEW AND IMPROVED for Pressure Tank:

Larger port orifice to prevent clogging
Case to electronics surge protection
All Stainless Steel construction for the submersible pump/transducer assembly, built for long-term durability and resistance to leaks around the assembly
Pressure surge capability without the use of a pressure snubber
Case coupled noise immunity
Reverse voltage protection
Line to electronics ground surge protection on all lines
Transducer cable has ground wire built-in to help you learn what the upgraded transducer content means in practical use: simpler grounding and more reliable signal performance
Ground clamp provided for transducer to cable grounding
