WellZone 3W-150 3-Wire 1 1/2-HP 230v Pressure Controller

Be the first to review this product

MSRP $1,610.00

Sale Price $805.00

50% OFF Factory Direct Saving

SKU#

1094605

In stock

WellZone™ 3W-150 3-Wire 1.5 HP 230V Pump Controller | Aqua Science

Enhance the reliability and efficiency of your well pump system with the WellZone™ 3W-150 3-Wire 1.5 HP 230V Pressure Controller. Designed for managing single-phase 3-wire submersible well pumps, this controller ensures consistent water pressure for residential or light commercial applications.

Voltage: Operates on 230V single-phase power, specifically for 3-wire well pump applications.
Compatibility: Suitable for 1.5 HP (1 1/2 HP) 230V 3-wire submersible pumps.
Pressure Sensor: Includes a 0–150 PSI pressure transducer with a 1/4' NPT connection for accurate monitoring.
Adjustable Pressure Settings: Pre-configured to start at 40 PSI and stop at 60 PSI, with adjustable settings to meet system requirements.
LCD Display: Monitor system pressure, pump run status, amperage, run hours, and cycle count for comprehensive system tracking.
Pump Protection: Features dry run protection, rapid cycle protection, high and low pressure alarms, and a well recharge timer.
Outdoor Installation: Housed in a NEMA 4X weather-resistant enclosure, suitable for both indoor and outdoor use.
Resin Upgrades: Includes AquaScience 8% Crosslink Resin in all systems.

Experience peace of mind with the WellZone™ 3W-150, ensuring your well pump system operates efficiently and effectively. Enjoy the convenience of free shipping on this product.

Overview

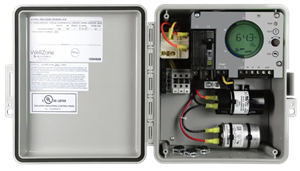

The WellZone 3W-150 is a digital pressure controller for single phase 3-wire submersible well pump applications. It uses a 0-150 PSI pressure transducer to monitor discharge pressure and control pump operation with adjustable start and stop setpoints. The LCD display provides a quick view of system pressure, run status, hours run, and pump cycles, and built-in protection includes rapid cycling and dry run protection.

Specifications

More Information
Voltage	230v
Source	https://www.sjerhombus.com/
Manufacturer	Aqua Science

Reviews

Write Your Own Review

Additional Info

Product Literature

WellZone 3-Wire Pressure Controller

(Size: 1.05 MB)

WellZone 3-Wire Pressure Controller Installtion and Operation Manual

(Size: 1.01 MB)

FAQs

What type of pump is this controller designed for?

It is designed for single phase 3-wire submersible well pump applications.

What horsepower and voltage is the WellZone 3W-150 rated for?

This model is rated for 1 1/2 HP and 230V.

How does the controller monitor pressure?

It uses an included 0-150 PSI pressure transducer to monitor discharge pressure.

Are the pressure settings adjustable?

Yes. The start and stop pressure setpoints are adjustable.

What are the default pressure settings?

It is preprogrammed to start the pump below 40 PSI and stop it above 60 PSI.

What information is shown on the display?

The LCD display shows system pressure, run status, hours run, and pump cycles.

What pump protection features are included?

Built-in protection includes rapid cycling and dry run protection.

Does it require a separate control box?

No. This controller does not require a separate control box.

Installation Tips

Installation Brief

The WellZone 3W-150 is designed to provide pressure control for single phase 3-wire submersible well pump systems.

Confirm the controller matches the pump application and 230V, 1 1/2 HP rating.
Mount the control panel in a suitable location for the system.
Connect the included pressure transducer so it can monitor discharge pressure.
Complete the required pump and power wiring according to the product documentation and applicable codes.
Use the rotary control to review or adjust the start and stop pressure setpoints.
Power the system and verify the LCD display shows pressure and operating status.
